Technical data

Basic data

Intrinsically safe flashlight

yes

Max. luminous flux [lm]

280

Max. operating time [h min]

280 h

Max. range [m]

Number of modes

Applied technologies

Diode type

2x white: Cree™ XP-G3

Material and finish

Color

black

Housing material

aluminium 6061-T6

Additional data

Application (purpose)

industry,

rescue

Certificates, Reviews, Approvals

ATEX TÜV 18 ATEX 8252 X

ATEX TÜV 18 ATEX 8252 X – EU certificate confirming that the device is safe in explosion-hazardous areas. It ensures user protection, minimizes the risk of accidents and downtime, and increases confidence and comfort when working in difficult conditions.

GRGT 25.0015X

GRGT 25.0015X – a certificate confirming that the device is safe in explosion-hazardous areas. It protects users, reduces the risk of failures and downtimes, and ensures calm and reliable operation in harsh environments.

IECEx TUR 18.0042X

IECEx TUR 18.0042X – an international Ex certificate guaranteeing safe use of the device in explosion-hazardous areas. It confirms compliance with strict IECEx standards, which increases confidence, facilitates sales in global markets, and minimizes the risk of downtime.

Color temperature range – diffused mode [K]

5000

Drop resistance [m]

Max. luminous intensity [cd]

117

Dimensions and weight

Mass [g]

153

Overall depth [mm]

45,5

Total height [mm]

Total length [mm]

112

Security Features

IP Protection Class

IP66

6 - protection against access to hazardous parts with wire, dustproof protection 6 - protection against strong water jets (100 l/min) sprayed on the enclosure from any direction The first digit – means that the enclosure provides protection for people against access to hazardous parts located inside, and simultaneously provides protection against the ingress of foreign solid objects. The second digit – means that the enclosure provides protection against the effects of water ingress.

Power supply

Battery charge indicator

yes / LED

Cell power

ARB-L21-3000Ex battery

ARB-L21-3000Ex battery – safe and reliable power supply for your devices. The ARB-L21-3000Ex lithium-ion battery with a capacity of 3000 mAh and a voltage of 3.6 V was designed for maximum safety and efficiency. Thanks to its explosion-proof design, you can use it in harsh industrial and outdoor conditions without fear of explosion risk.

Power source

cells,

USB-C port

Included

Flashlight set elements

helmet mounting adapter,

battery ARB-L21-3000Ex,

EU declaration of conformity,

manufacturer's instruction,

USB-C cable,

manufacturer's warranty card,

flashlight,

spare o-ring ×1 (spare seal),

charger with protection

Warranty

Warranty period

5 years manufacturer's

Manufacturer information

Series

White

EAN

6942870312064

Symbol dostawcy

WH35RE

Brand

Fenix, Shuiku Road 2F/3F 111 West of Building A, Xinghong Technology Chiny, [email protected]

Responsible Person in the EU

KOLBA sp. z o.o., Wiejska 46 41-253 Czeladź Polska, 6252483366, [email protected]

Description

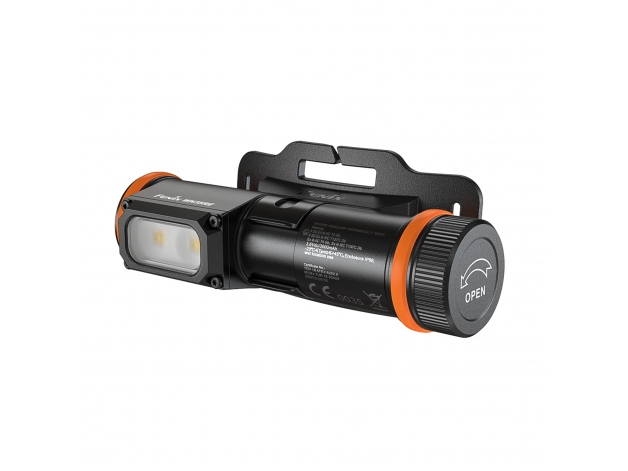

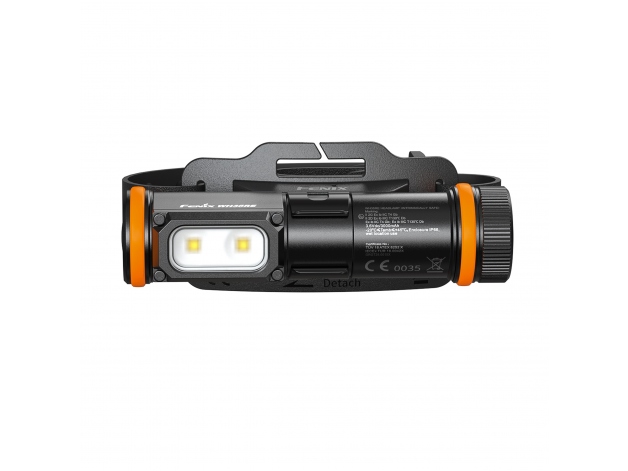

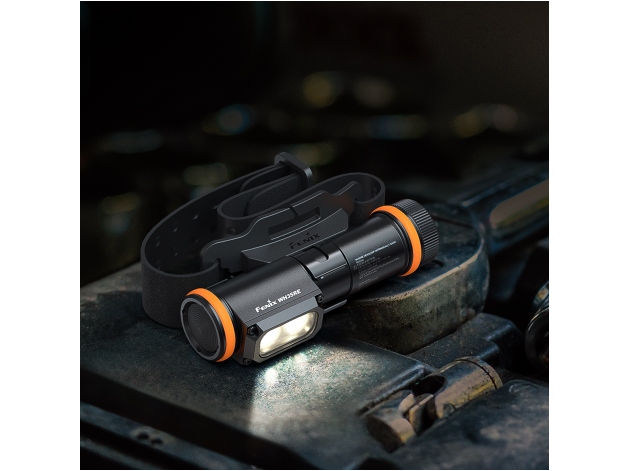

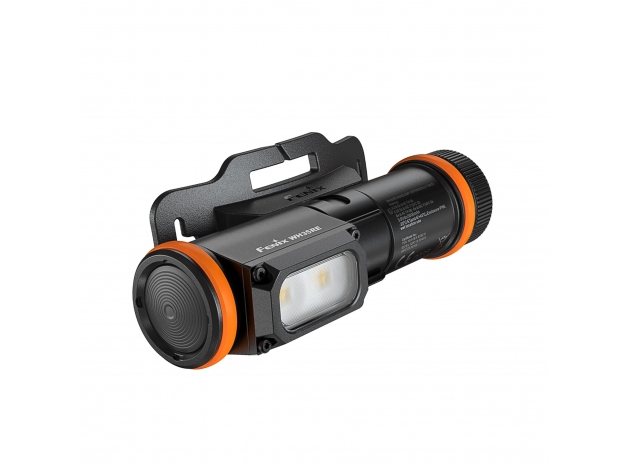

The WH35RE intrinsically safe headlamp was created for work where the margin for error doesn't exist: in zones 1/2 and 21/22, in the oil, chemical or energy industries. It meets strict explosion-proof standards (IECEx/ATEX/GRGT), so you can focus on the task at hand - not the risk. The one-piece diffusion lens gives soft, even light, and the large on/off switch operates securely even when wearing gloves. It's a reliable companion for shift service, inspections and rescue operations.

Fenix WH35RE intrinsically safe headlamp - features

IECEx/ATEX/GRGT certified intrinsically safe headlamp - safe in zones 1/2 and 21/22.
Large single switch - control all modes, even when wearing gloves.
USB-C with internal sealing - fast, convenient and condition-resistant charging.
Battery level indicator and low voltage warning - full power control.
Detachable head - can be used as a handheld flashlight or chest light.
One-piece diffusion lens - soft, balanced light.
SOS mode for emergencies - ready to signal in the field.
A6061-T6 aluminum body - lightweight, rugged, and ready for hard use.

Fenix WH35RE intrinsically safe headlamp - comfort and handling without compromise

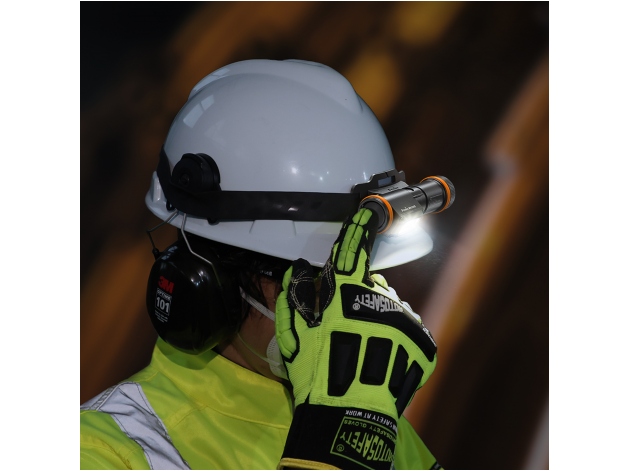

A removable angled head turns the headlamp into a handheld flashlight or chest light - one piece of equipment, multiple uses. One large switch ensures that operation in difficult terrain remains intuitive, fast and flawless. In emergency mode, you have an SOS signal at your disposal - ready when seconds count.

The WH35RE charges via USB-C - the port is hidden and sealed in the body, so charging in the field is simple and safe. A built-in indicator lets you know the power level, and a low voltage warning reminds you to plug in before it gets really dark. The whole thing is encased in a rugged A6061-T6 aluminum housing - lightweight and industrial-grade durability. (You can also find compatible flashlight accessories in our offer, including holders, diffusers and spare cells).

The two CREE XP-G3 LEDs (50,000 hr life) work with a uniform diffusing glass that distributes the beam so that your eyes get less fatigue and details are more visible at short and medium distances. It's this balance that makes the WH35RE shine when inspecting equipment, working at height or in dusty production halls - anywhere a clear view of the environment matters.
